Our Work

Case Studies

Real parts we have manufactured. Every project includes process details, tolerances, lead times, and the specific challenges we solved.

±0.01mm

Tightest Tolerance

6

Featured Projects

100%

On-Spec Delivery

Featured Project

Industrial Joystick Assembly

A compact joystick control assembly for industrial equipment, combining machined metal hardware, a zinc-finished lower housing, rubber boot, fasteners, and a molded grip. The project focused on smooth fit, stable assembly, and clean surface presentation.

Process

Machining + Assembly

Material

Steel / Rubber / Plastic

Quantity

100 pcs

Tolerance

+/-0.05mm

Lead Time

15 business days

Finish

Black + Zinc Finish

CNC MillingZinc Plated

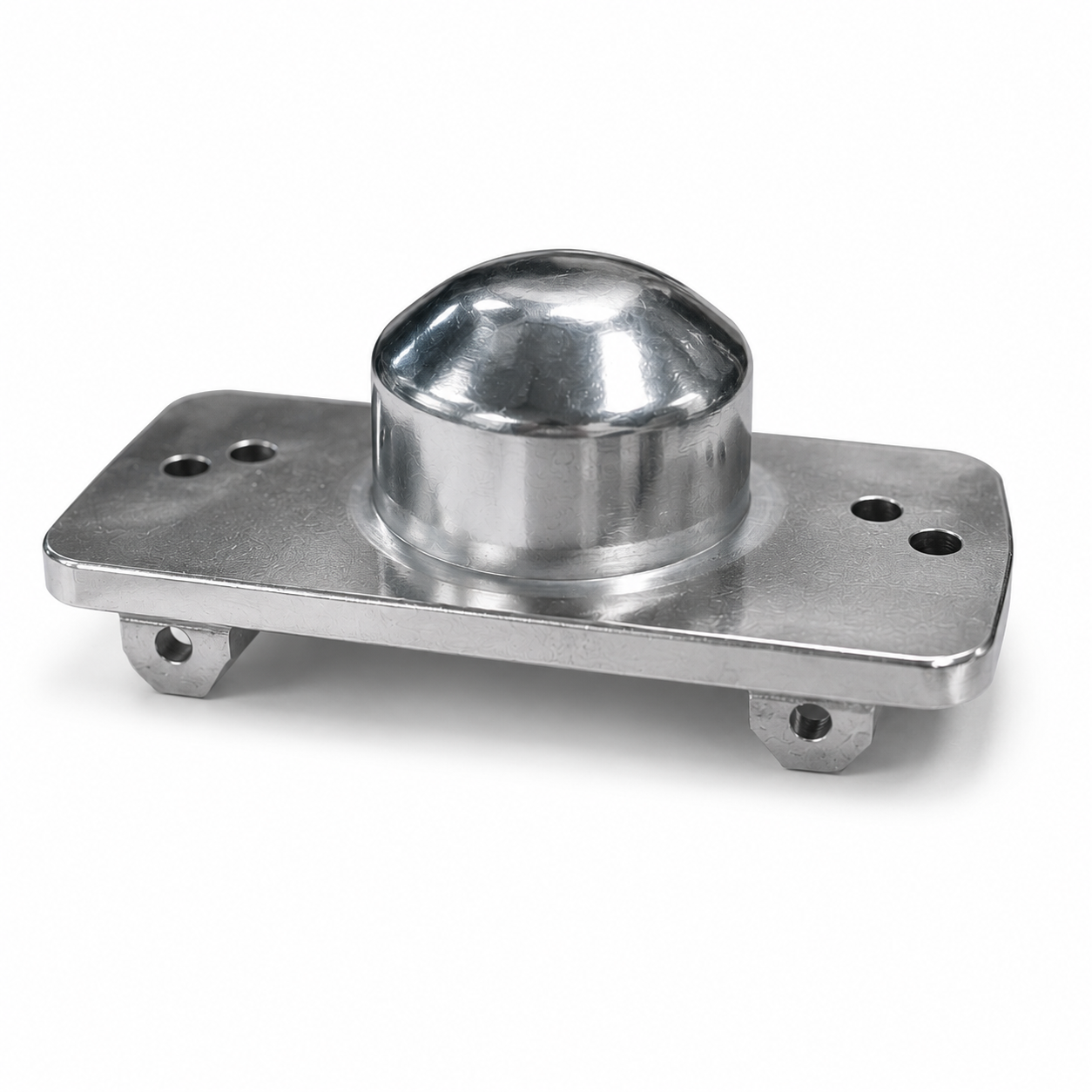

Polished Mounting Base Plate

300 pcs - Qty+/-0.03mm - Tol10 days - LTPolished Plating - Finish

Challenge: Keep the dome surface clean while holding hole positions and bracket alignment.

CNC TurningSteel Shaft

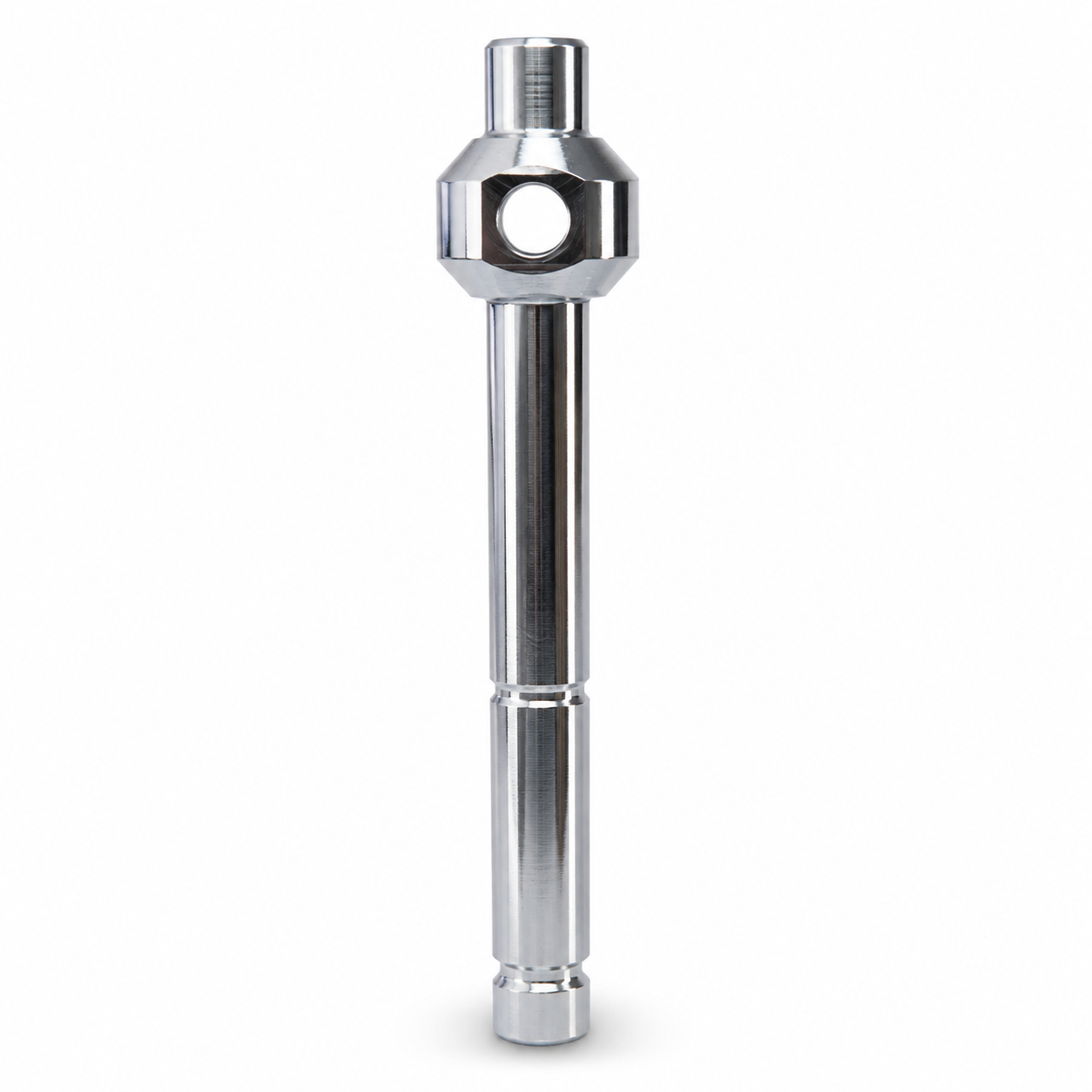

Precision Linkage Shaft

200 pcs - Qty+/-0.015mm - Tol8 days - LTPolished - Finish

Challenge: Control straightness, concentricity, and cross-hole position on a slim turned shaft.

5-Axis CNCAluminum

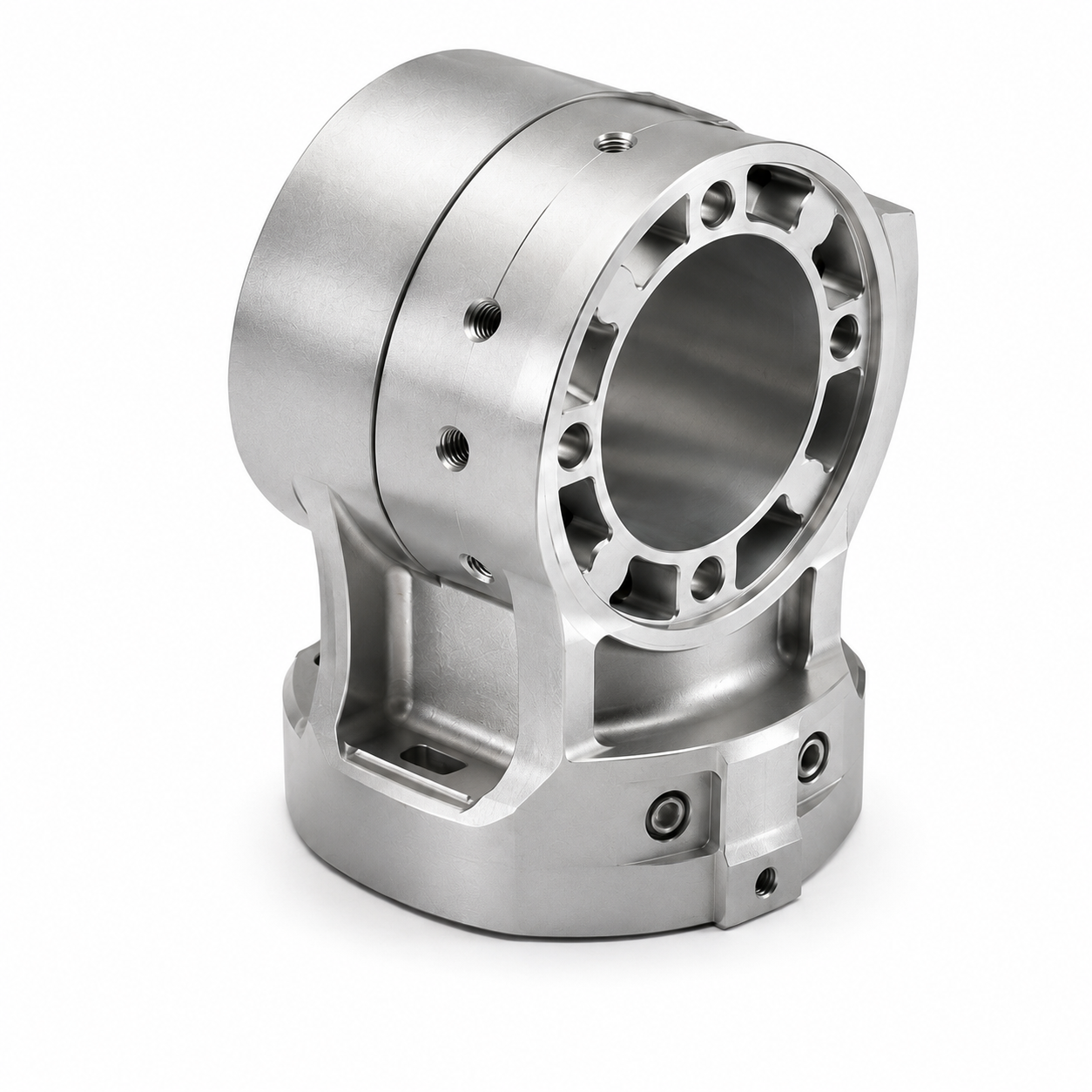

Robot Joint Housing

80 pcs - Qty+/-0.02mm - Tol16 days - LTBead Blast - Finish

Challenge: Machine the large bore, bolt circle, side threads, and pocket features in one stable housing.

CNC TurningZinc Plated

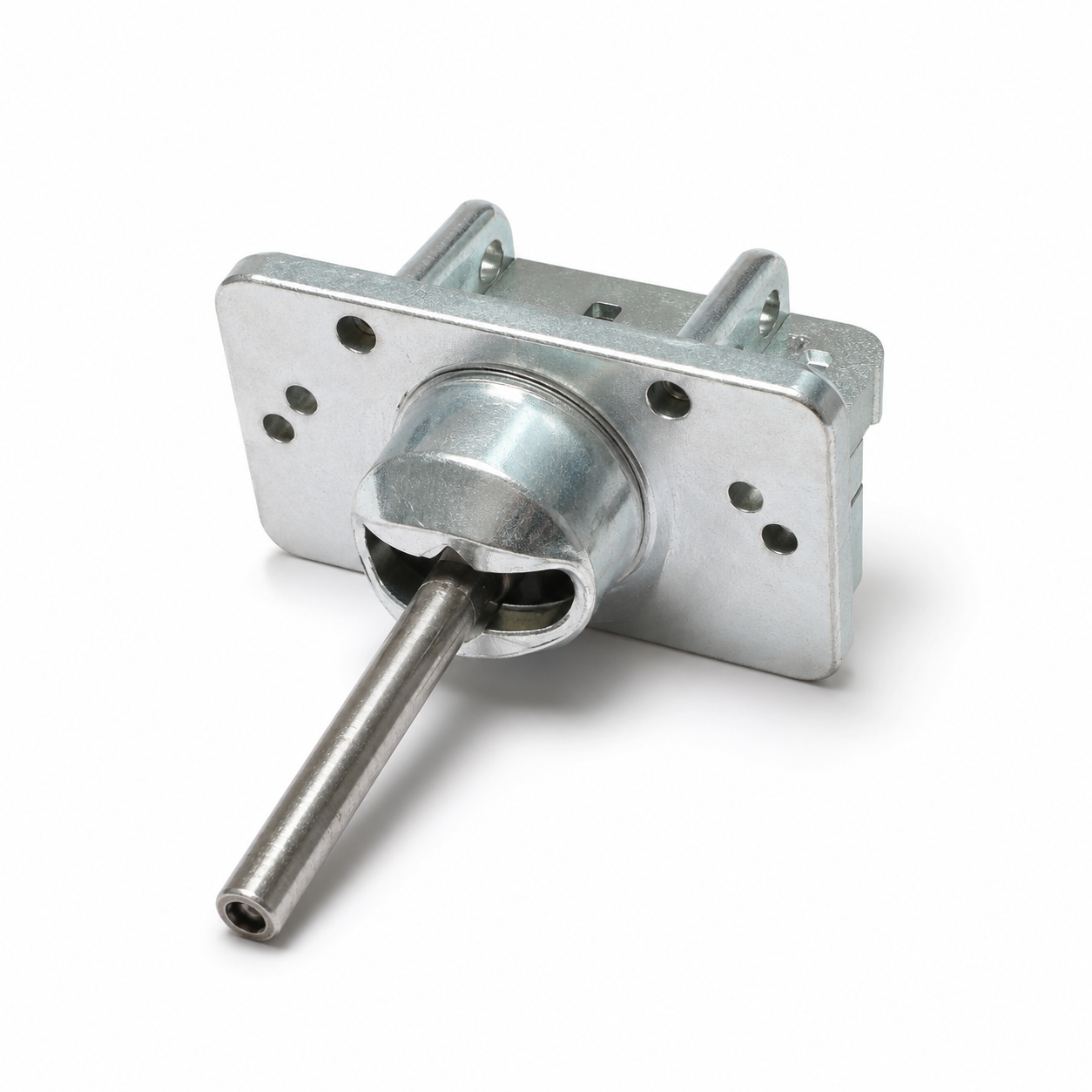

Shaft Bracket Assembly

150 pcs - Qty+/-0.03mm - Tol12 days - LTZinc Plated - Finish

Challenge: Align the shaft, formed cover, and mounting plate holes after surface finishing.

CNC MillingAluminum

Fork Clevis Bracket

120 pcs - Qty+/-0.02mm - Tol11 days - LTMatte Finish - Finish

Challenge: Keep fork spacing, pin holes, threaded ports, and slot geometry consistent after milling.

CNC MillingThreaded Part

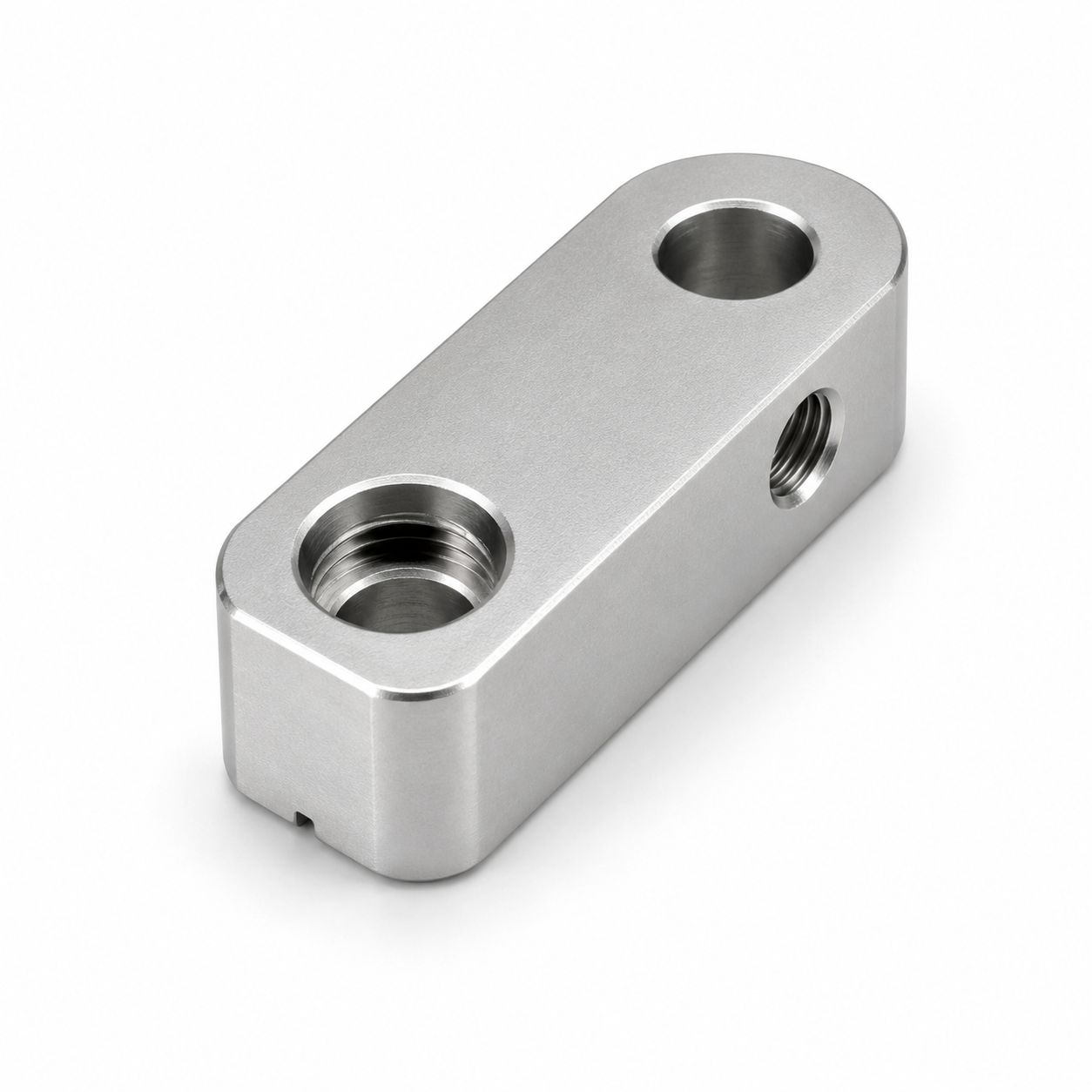

Threaded Connector Block

250 pcs - Qty+/-0.025mm - Tol9 days - LTBrushed - Finish

Challenge: Hold tapped holes, side thread alignment, rounded ends, and clean chamfers on a compact block.
