Robot Joint Housing

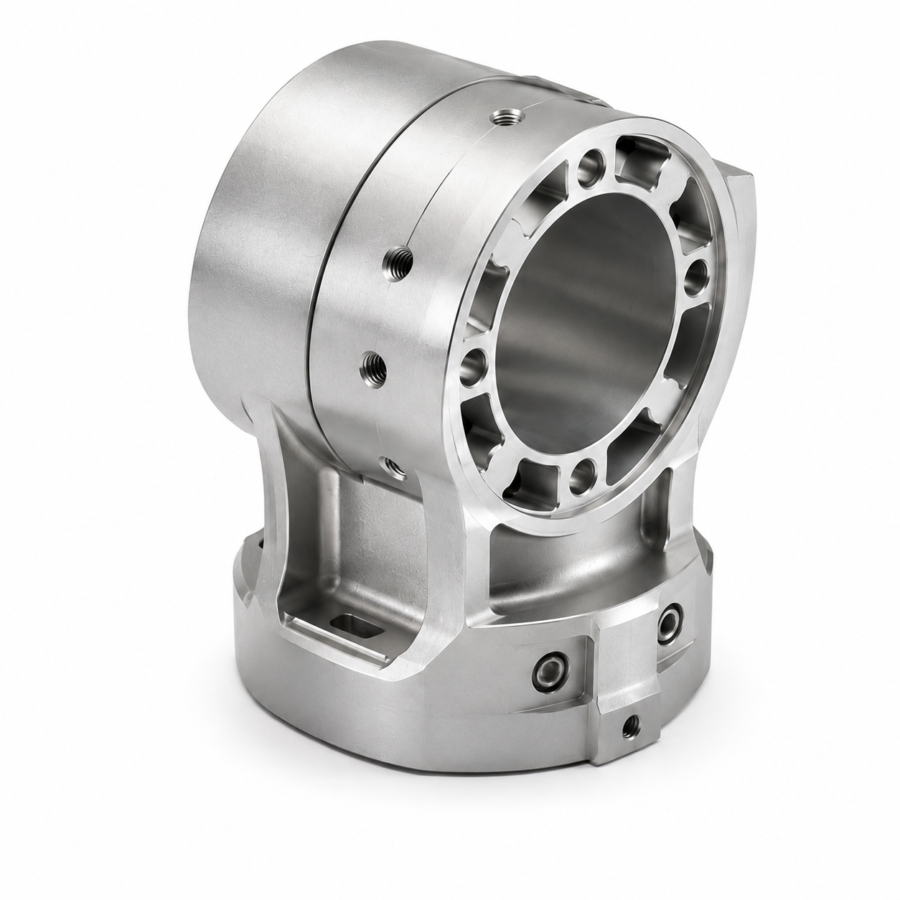

This reference illustrates robot joint housing CNC machining for aluminum parts with central bores, mounting flanges and threaded ports. Send your drawing for a 5-axis machining review and quotation.
- Material reference
- Aluminum alloy
- Process planning
- 5-axis CNC milling
- Tolerances & finish
- Per approved drawing
- Quantity & delivery
- Confirmed after review
Aluminum Robot Joint Housing: Key Features
Large central bore & assembly axis
Review the bore, fit and datum faces together so the assembly requirements guide the machining sequence.
Flange & bolt-circle interfaces
Identify the mating face and bolt-circle pattern before deciding how to locate, support and orient the part.
Side ports & threaded interfaces
Check tool access to threaded ports, thread specification and alignment with the relevant faces and assembly features.
Structural ribs & pocket walls
Consider support, remaining stock and cutting order to limit movement around the thinner sections.
5-Axis CNC Machining for Robot Joint Housings
For complex robot joint housings, review datum faces, workholding and tool access before selecting a staged 5-axis CNC plan.
Material & blank review
Confirm the aluminum alloy, stock route and machining allowance against the model, quantity and material requirements.
Datums & workholding
Plan locating faces and support points. Evaluate 5-axis positioning to keep critical datums accessible and reduce unnecessary refixturing.
Critical faces, bores & threads
Plan roughing, semi-finishing and finishing to support thin walls. Complete critical interfaces from controlled references, then deburr and apply the specified surface treatment.
These images illustrate process concepts rather than a customer production record. The stock route, machine configuration and number of setups are confirmed during drawing review.
Explore CNC milling capabilities
Inspection starts with the drawing
Agree the critical characteristics, suitable measurement methods, sampling and required inspection records before production.
- Bore size & fit
- Bore diameter, roundness and the specified assembly fit, where required.
- Datum relationships
- Datum flatness and relationships between the bore, mounting faces and assembly axis.
- Hole locations & threads
- Bolt-circle position, port alignment and specified thread condition.
- Pockets, edges & surfaces
- Pocket depth, burr removal and surface condition against the agreed drawing and finish.
Protect the interfaces through delivery
Packaging planning considers the machined surfaces, part geometry and shipping conditions.
- Clean & protectAddress chip removal and protection of exposed mating surfaces.
- Support & separateChoose cushioning and restraint to reduce movement and part-to-part contact.
- Identify & documentAgree labeling, inspection records and any requested material documentation.
Review your robot joint housing drawing
Have a similar robot joint housing to manufacture? Send the drawing and project requirements for a manufacturability review and quotation.
- 3D model and dimensioned 2D drawing
- Material grade and target quantity
- Critical tolerances and assembly requirements
- Surface treatment and inspection records
- Delivery destination and target schedule
STEP / STP / IGES / PDF / ZIP. Final specifications and delivery are confirmed after engineering review.
