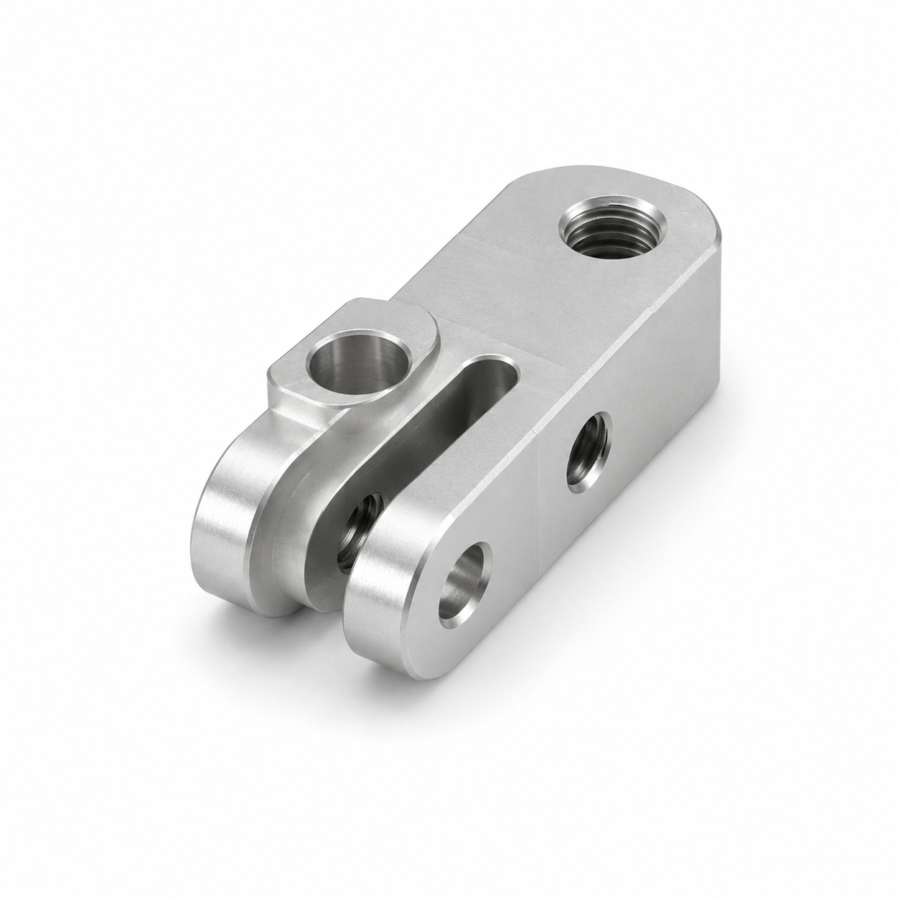

A compact CNC-milled clevis bracket with parallel arms, coaxial pin holes, threaded ports, a center slot, and chamfered edges.
A compact CNC-milled clevis bracket with parallel arms, coaxial pin holes, threaded ports, a center slot, and chamfered edges.
Keep fork spacing, pin holes, threaded ports, and slot geometry consistent after milling.
We rough-machined the slot first, finished the fork arms from stable datums, and tapped the threaded ports after critical alignment checks.
Fork gap, hole diameter, hole alignment, thread quality, slot width, edge chamfers, and surface finish were inspected before packing.
This aluminum clevis bracket includes parallel fork arms, coaxial pin holes, side threaded ports, a long center slot, and clean chamfered edges.
We rough-machined the slot first, finished the fork arms from stable datums, and tapped the ports after critical alignment checks.
Inspection covered fork spacing, hole diameter and alignment, thread quality, slot width, chamfers, and matte surface consistency.
Send your drawing, target quantity, material, and application. We will review manufacturability and return a clear quote.
